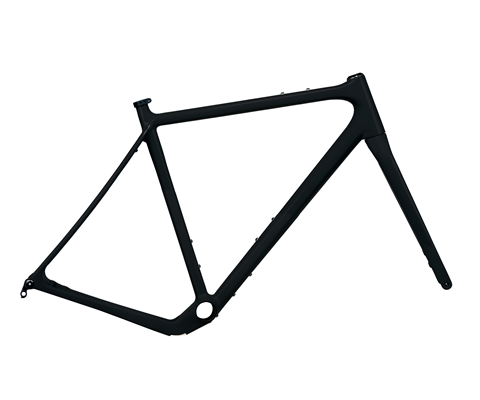

dutchOPENCycle OPEN WI.DE. Extreme Gravel Disc Flat Mount Rahmenset RTP (ready to paint!)
| Frameset Price (Euro) | 3.500 € | |
| Frame-only size M, ±3% | 1.040g | |
| Fork-only weight, ±3% | 390g | |
| Sizes | XS/S/M/L/XL | |
| Color | Grey matte/gloss mix, RTP | |
| RTP (Ready-to-paint) | A clearcoat is not needed for UV protection but recommended to protect against scratches and wear. Some customers leave the frame bare. | |
| BB standard | BB386EVO pressfit 86x46mm BB shell | |
| Shimano crank fit | All road cranks | |
| SRAM crank fit | All GXP road, all DUB road, Force 1 BB30 | |
| Front derailleur mount | none, 1x drivetrains only | |
| Recommended ring shape | Flat (for example Wolftooth) | |
| Minimum 1x ring size | 38t (flat & offset rings) | |
| Maximum 1x ring size | 46t (flat ring), 42t (SRAM offset ring) | |
| Rear thru-axle | 142x12mm superlight Carbon-Ti X-12 | |
| Front thru-axle | 100x12mm superlight Carbon-Ti X-12 | |
| Front disc rotor size | 160mm only | |
| Front brake caliper mount | Smartmount 160 system with direct-mount, no adaptors | |
| Front brake bolts SRAM | 37mm “REAR” brake bolts for 30mm "chainstay" | |
| Front brake bolts Shimano | 43mm “REAR” brake bolts for 30mm "chainstay" | |
| Rear disc rotor size | 160mm only | |
| Rear brake caliper mount | Smartmount 160 system with direct-mount, no adaptors | |
| Rear brake bolts SRAM | 1x 27mm, 1x 32mm | |
| Rear brake bolts Shimano | 1x 33mm, 1x 38mm | |
| MultiStop internal system | Mechanical 1x, Di2, eTap | |
| Headset | Integrated IS42/28.6 | IS52/40 | |
| Seatpost | 27.2mm diameter, standard set-up zero-offset | |
| Cage mounts | Seattube, downtube, under-downtube, under-BB | |
| TT bag mount system | 100mm front-post-to-headset-edge | |
| Indoor trainer compatibility | Detailed information here | |
| Installation information | Shift cable installation Brake hose installation Seattube collar installation Crank compatibility Torque specs |
|
| Warranty | Detailed information here | |
| Included with frameset: Headset, seattube collar, thru-axles, 2 RD hangers, 3 MultiStops (1x, Di2, eTap), cable exit stop, noise-reduction foam sleeves, bottle cage bolts, manual | ||
GEOMETRY
| ¹ | Rider heights are suggestions; for more accuracy use the stack/reach of your current gravel/cross/road bike or a full fitting session. |
| ² | Standover varies with tire size and is measured to the top of the toptube directly above the BB. |
| ³ | Normalized dimensions to compare to frames with standard seattube instead of our zero-setback seattube design. |
| XS | S | M | L | XL | |
| rider height¹ (cm) | <165 | 160-171 | 169-180 | 178-191 | 188-205 |
| stack | 520 | 545 | 570 | 595 | 620 |
| reach | 346 | 358 | 370 | 382 | 394 |
| standover² | 707 | 739 | 777 | 794 | 817 |
| headtube angle | 68.0° | 69.0° | 71.0° | 71.5° | 71.5° |
| headtube length | 99 | 125 | 150 | 170 | 196 |
| fork offset | 50 | 50 | 50 | 50 | 50 |
| seattube length | 500 | 500 | 530 | 560 | 590 |
| seattube angle | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| seattube angle (norm.³) | 74.5° | 74.0° | 73.5° | 73.5° | 73.5° |
| toptube length | 510 | 530 | 550 | 570 | 590 |
| toptube length (norm.³) | 490 | 515 | 540 | 560 | 580 |
| BB drop | 80 | 77 | 75 | 75 | 75 |
| front center | 583 | 596 | 599 | 613 | 634 |
| rear center | 420 | 420 | 420 | 420 | 420 |
| wheelbase | 990 | 1004 | 1009 | 1022 | 1042 |
